The SZ-RR is defined by the sporty styling and look of quality in its exterior design with special features like its smoked windscreen, aluminum grab-bars and 3D “SZ” emblem.

The product concept behind SZ-RR is “Powerful & Comfortable! stylish Commuter. The SZ-RR is targeted at commuter customers with their sports-oriented interests and its designed to create the sensation of “High Speed”. The bike comes with front disc brake, tachometer and has tank protector added to the fuel tank to make it appear even larger.

Furthermore, the SZ-RR has aerodynamic spoiler that extends out boldly and is given the same silver coloring. The bike also has clear lens flasher, colored handle grip end bar, painted muffler end caps along with special graphics.

Engine
Engine type
Air cooled, 4 stroke, SOHC, 2-Valve
Displacement
153 cc
Bore & Stroke
58.0 X 57.9mm
Compression ratio
9.5:1
Maximum Output
12.1PS/7500rpm
Maximum torque
12.8Nm/4500rpm
Starting system
Electrical Start + Kicker Start
Lubrication
Wet sump
Cylinder layout
Single cylinder
Clutch type
Wet, multiple disc
Ignition system
C.D.I
Fuel supply
Carburettor
Battery
12V,5 AH(10H)
Headlight
Halogen bulb (12 V, 35/35 W)
Primary/Secondary reduction ratios
3.409/3.000
Tranmission type
5 gear constant mesh
Caster/Trail
26 degree/99 mm
Gear ratios
1st=2.714, 2nd=1.789, 3rd=1.318, 4th=1.045, 5th=0.916
Chassis
Frame type
Diamond
Suspension (Front/Rear)
Telescopic/Swingarm
Brake Type (Front/Rear)
Disc /Drum
Tyre size (Front/Rear)
(2.75- 17 41P )/ (100/90-17 55P)
Dimensions
Overall length x width x height
2050 x 730 x 1100 mm
Kerb Weight
132 Kg
Seat Height
802mm
Wheelbase
1,320mm
Minimum ground clearance
165mm
Engine oil volume
1000 ml
Fuel tank capacity
14 liters

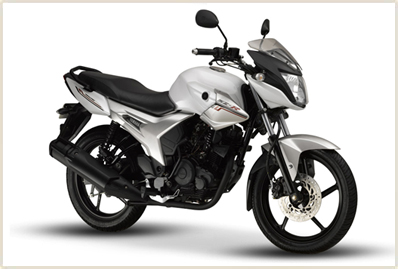

Image 2

Comming soon...
