• Specification

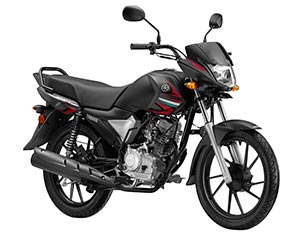

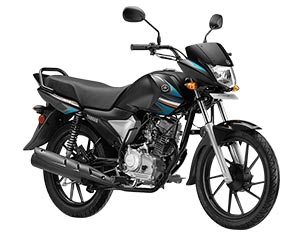

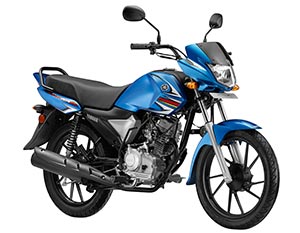

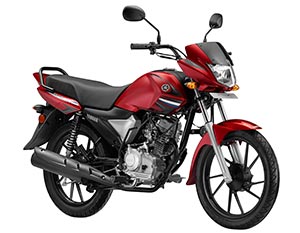

  • Colour
  • Benefits RX

110cc Blue Core Engine
An all-new BLUE CORE engine with improved fuel economy, air-cooled, 4-stroke, SOHC, 110cc, 2-valve single-cylinder engine. Its bore * stroke of 50.0 * 56.2 mm and 9.9:1 compression ratio help the engine put out a maximum power of 5.5 kw (7.48 PS) at 7,000 rpm and a maximum torque of 8.5 N.m (0.87 kgf.m) at 4,500 rpm. The engine takes advantage of the long-stroke spec's capacity for low-rpm torque, while also featuring excellent combustion efficiency thanks to the high compression ratio, a high level of cooling efficiency and a low power loss design, all helping the unit achieve class-leading levels of fuel efficiency. Also, cutting-edge designs for the detail components result in an engine with low levels of vibration without employing a balancer. It is not only compact and lightweight but also enables greater freedom for mass-centralization and chassis design, thus contributing to the machine's power output and fuel efficiency, as well as an outstanding riding character.

Engine
Engine type
Air cooled, 4-stroke, SOHC, 2-valve
Cylinder arrangement
Single cylinder
Displacement
110cc
Bore & Stroke
50.0 x 56.2mm
Compression ratio
9.9:1
Maximum power
5.5kW(7.5PS)/7000r/min
Maximum torque
8.5N.m(0.9kgf.m)/4500r/min
Starting system
Electric starter and kickstarter
Lubrication
Wet Sump
Engine oil capacity
1.00L/1.05usqt/0.88Imp.qt
Fuel tank capacity
7.2L/1.9usgal/1.6Imp.gal
Fuel supply system
Carburetor
Ignition system
TCI (transistor controlled ignition)
Primary / Secondary reduction ratio
3.421 (65/19) / 3.000 (42/14)
Clutch type
Wet, multiple-disc
Transmission type
Constant mesh, 4-speed
Chassis
Frame type
Diamond
Tire size (Front / Rear)
2.75-17 41P Tube type / 3.00-17 50P Tube type
Brake type (Front / Rear)
Drum Brake
Suspension type (Front / Rear)
Telescopic fork/ Swingarm
Headlight
Lo beam12V/35W X1, Hi beam12V/35W X2
Dimensions
Overall length x width x height
2020mm x 740mm x 1045mm
Seat height
785 mm
Wheelbase
1,255 mm
Minimum ground clearance
175 mm
Weight(with oil and a full fuel tank)
98 kg

Image 2

  1. Young & Stylish Design
  2. Easy to Handle even in City Traffic
  3. Comfortable toride alone or with pillion
  4. Top Class Mileage
  5. Affordable Price
