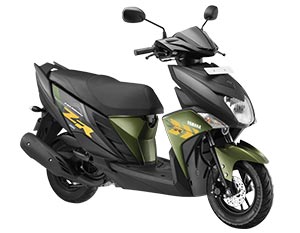

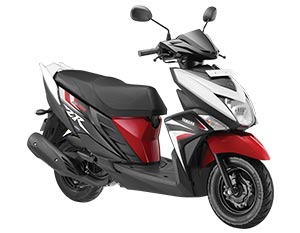

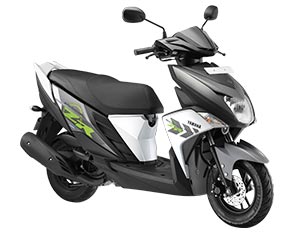

  • Colour
  • Benefits of ZR

Ray ZR
The design realizes the "Real Boy's Scooter" concept by balancing the deeply-sculpted and powerful front mask, effortlessly-layered straight lines, and tail surround accentuated with a sense of speed. The Cygnus Ray-ZR is powered by an air-cooled 4-stroke, SOHC, 2-valve 113cc "BLUE CORE" engine with a continuously variable transmission (CVT) unit. It features a lightweight body (103 kg) with glamorous design and offers user-friendliness. The main features also include, An engine with high combustion efficiency to offer among the best fuel efficiency in its class at 66 kmpl* (*under standard test conditions), Plenty of storage space (21 litres under seat storage), Newly designed instrument cluster with excellent readability, even at night and Tubeless tyres.

Engine
Engine type
Air-cooled, 4-stroke, SOHC, 2-valve
Displacement
113 CC
Starting System
Electric start & Kick start
Lubrication System
Wet Sump
Maximum torque
8.1Nm (0.8kgf-m)/5000rpm
Fuel supply
Carburetor
Ignition System Type
CDI (Capacitor Discharge Ignition)
Fuel supply system
Carburetor
Ignition system
TCI (transistor controlled ignition)
Chassis
Tire Size(Front & Rear)
90/100-10 53J Tubeless
Suspension Type(Front)
Telescopic Fork
Suspension Type(Rear)
Unit Swing
Headlight
12V,35/35Wx1
Brake/Taillight
12V,21/5W x 1
Dimensions
Overall length
1,820 mm
Seat height
775 mm
Wheelbase
1,270 mm
Minimum ground clearance
130 mm
Wet Weight(with oil & a full fuel tank)(Disk/Drum)
103kg / 105kg

Image 2

  1. Distinctive & Muscular Design
  2. Fun & Comfortable to Ride
  3. Very Convenient to use Scooter
  4. It has desired safety features
  5. High fuel efficiency
