The new RAY is equipped with an air-cooled 4-stroke 113cc engine with CVT (Continuous variable transmission) that boasts excellent reliability. The engine achieves good fuel economy in the practical-use speed range, a power output characterized by smooth start-up acceleration and quick passing acceleration and more.

Engine type
Air cooled, 4 stroke, SOHC, 2-Valve
113 CC
Bore x Stroke
50 x 57.8 mm
Maximum Out put
7.1 ps @7500 rpm
Maximum Torque
Starting system
Electrical Start + Kicker Start
Wet sump
Cylinder layout
Single cylinder
Wet sump
Cylinder layout
Single cylinder
Cutch Type
Ignition System
Fuel Supply
Transmission Type
V- Belt ,Automatic
12 V ,5.0AH (10H)
Head Light
12V,35W/35W X 1,Halogen Bulb
Suspension (Front/Rear )
Telescopic /Unit Swing Type
Brake Type (Front/ Rear )
Drum Brake ,130mm Diameter
Tyre Size (Front/Rear )
90/100-10 53 J (Tube Type)
Overall Lenght x width x height
1835 x 675 x 1075 mm
Kerb Weight
104 Kg
Seat Height
Wheel base
Minimum Ground Clearence
Fuel Tank Capacity
5 L

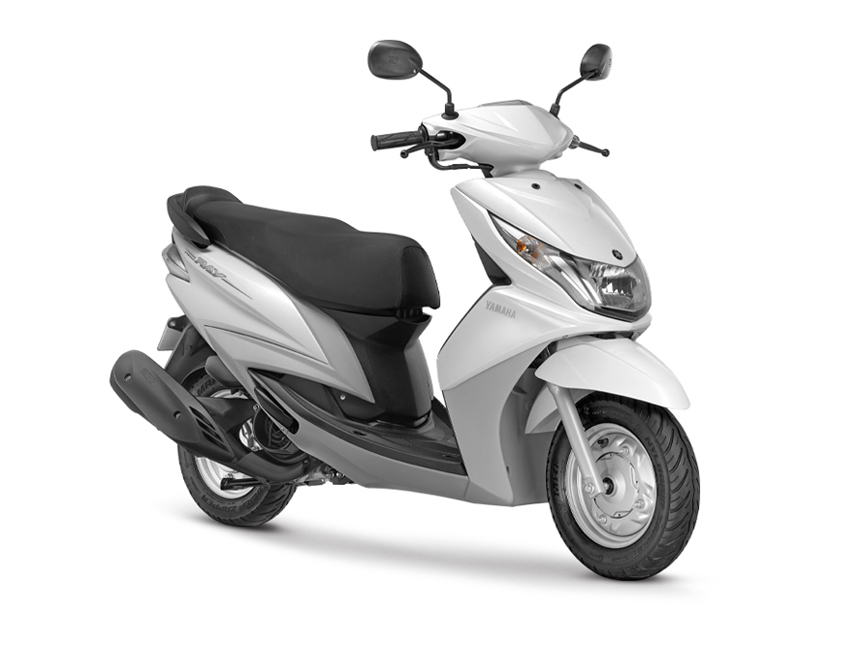

Image 2

What are the features of Yamaha Ray's Engine?

The new Ray has powerful 113 CC air cooled SOHC engine that has proven reliable in use in the markets of ASEAN countries.The engine intake/exhaust systems and new transmission settings is optimized for performance in the traffic and road conditions of india.

What's the advantages of BS type Carburettor in Yamaha Ray?

The engine is fitted with a BS type carburettor with a Throttle position sensor (TPS) function which we had already introduced in our motor bike series.

Term " CVT " in Yamaha Ray

CVT ie Continious Variable Transmission is a Technology used in gearless vehicles. Yamaha Ray's CVT is tuned in such a way that it helps in   a) ensure good running performance (good start up acceleration and running acceleration b) excellent fuel efficiency and c) good emission charecterstics

What is the advantages of seat as compared to other models?

To provide easy leg reach to the ground, an optimum design is adopted for the portion of the seat that comes into contact with the thighs.The seat is also designed with ease of mounting in mind.Overall the seat is also designed for a feeling of roominess and g reater comfort in tandem riding

What is the suspension for Yamaha Ray?

A combination of telescopic suspension at the front and unit swing suspension at the rear makes a good suspension system for great handling and ensures that the ride is smooth and quiet even on the bad roads.

How spacious is Yamaha Ray?

Under the seat is a storage compartment with a 15.5 ltre capacity , It can hold an A4 size file or jet type helmet recommened by Yamaha.In the front of the foot space is an inner box large enough to hold a 600ml plastic bottle, and there is convience hook designed for uses like hanging a daypack.Underfoot is a broad, flat footboard with plenty of space
